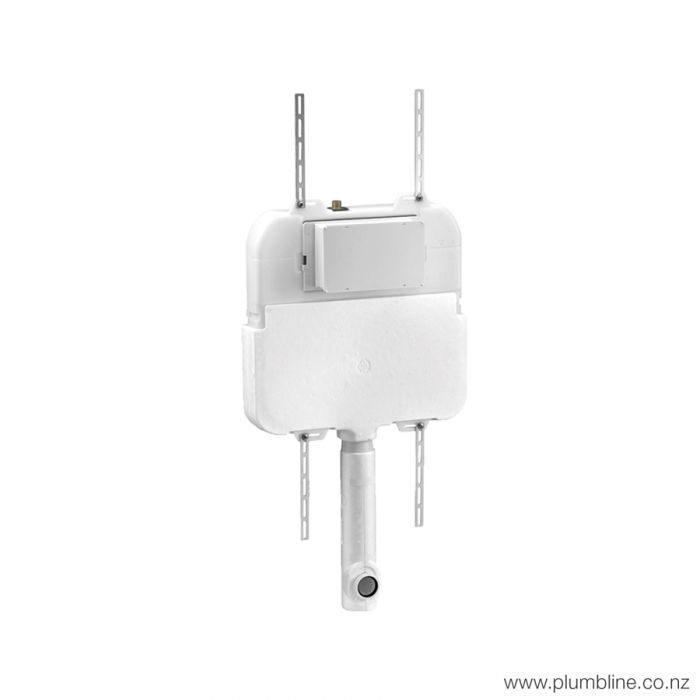

PLUMBLINE PROGETTO S20 SLIM INWALL CISTERN (FOR FLOORSTANDING TOILET PAN)

SKU: SPS200
$369
Description

The Progetto concealed cistern range provides a solution for all installation requirements and includes pneumatic & mechanical flush options, in-wall, under bench and remote cistern mounting options and a large range of modern flush panels and buttons.

Brand: Progetto
WELS Rating: 4 Star
Warranty: 10 Years

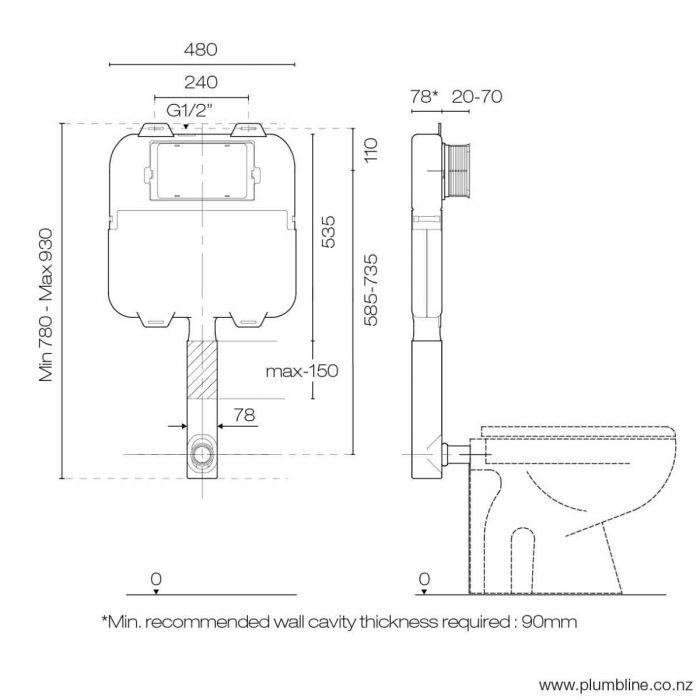

Width: 480mm
Depth: 78mm
Height: Min 780 - Max 930mm


Installation: Concealed inside wall cavity directly behind toilet pan or mounted remote ie. in ceiling (up to 2.5M from flush button)
Notes: Can be mounted in wall directly behind toilet pan or mounted remotely (when there is no room behind toilet pan for inwall cistern). Cistern can be mounted up to 2.5 metres from flush panel so could be mounted in a ceiling, cupboard or inwall.
Other Information: Designed for floor mount or wall hung toilet pans (wall hung bracket required when used with wall hung pans). 4 Star WELS rating (4.5/3 litre dual flush) can be adjusted to 6/3 litre flush. Flush panel can be installed on front of cistern or remotely.
Technical Spec Installation Instructions
