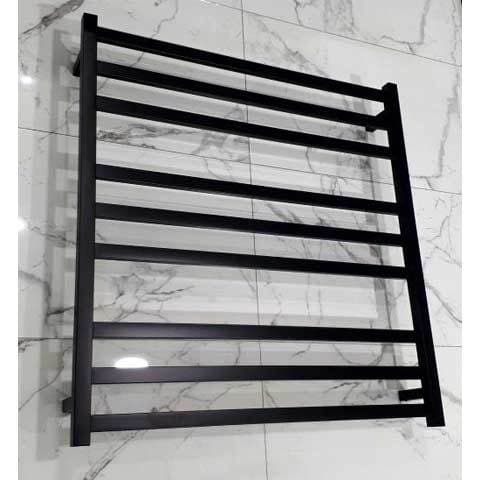

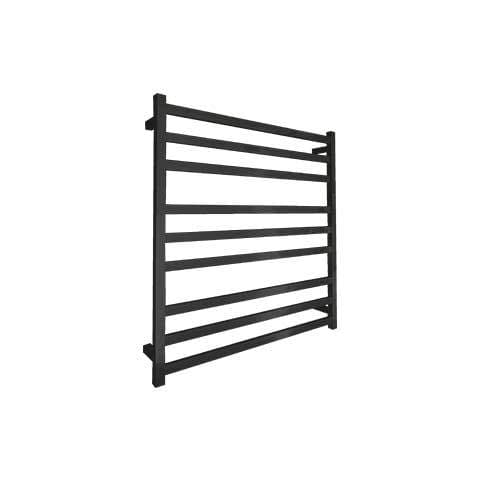

CODE SQUARE HEATED TOWEL LADDER 900X850MM - 2 COLOURS
5 Year Warranty
NZ Designed
LH or RH Wiring
Secure payment
Description
With the essence of contemporary. New Zealand designed, The Code heated towel rail collection offers a diverse range of colours and sizes.
- 5 year warranty.
- Left or right hand dual wiring.
- AS/NZS 60335 safety approved.
- IP55 rating
- Stainless steel.
- 240V I 98 Watts
- Timer included.
Care Guide
Technical Spec
IP55 Rated
Can be installed anywhere in your bathroom that is more than 600mm from a direct water source. Protected from limited dust ingress and low pressure water jets from any direction.
Dual Wiring
Our Code Heated Towel ladders offer dual wiring, and can be installed on either the Left Hand or Right Hand bottom feet.
Hidden or Exposed
Our Code Heated Towel Ladders offer both compatiable with Exposed or Hidden Wiring setups.
Hidden: (Wires are installed in the wall)
Exposed: (Wires are exposed on the outside of the wall and visible).
12 Volt vs 240 Volt Heated Towel Ladders
What is Low Voltage?
According to the Australia and New Zealand Standards – Electrical Wiring Rules AS/NZS 3000:2018 low voltage is anything "Not exceeding 12 Volts AC or 30 Volts ripple-free DC".
“Wet Area Suitable”
All Code Heated Towel Ladders are “Wet Area Suitable” have a suitable IP (Ingress Protection) rating that enables them to be installed in what is classified as Zone 1 (12V) Zone 2 (240V) in the bathroom.
Bathroom Zones
The Australia and New Zealand Standard AS/NZS 3000:2018 identifies the zones in a bathroom and the IP rating required for electrical items installed in each zone.
Zone 1: Requires electrical products to be IPX4 or better, and with the transformer located beyond zone 2.
Zone 2: Requires electrical products to be IPX4 or better, and with the transformer (if required) located beyond zone 2.
Zone 3: No IP rating required.
The illustration shown here is a guide only, for full details please refer to Australia and New Zealand Standard AS/NZS 3000:2018.
Frequently Asked Questions
How Does The Timer Feature Work?
Operation (Pre-set function): When you first turn the heated towel rail on, this will automatically use the timer’s pre-set function.
Pre-set function - The heated towel rail will turn on and remain on for a period of 4 hours, fol-lowed by 8 hours off.
Programming: You can increase the ON period in increments of 1 hour by turning the heated towel rail off at your switch then on again within 10 seconds of first turning the rail on. Each repetition of this on/off sequence will increase the ON period by 1 hour (maximum of up to 11 hours).
If you would like to restore the pre-set 4 hour setting, discharge all of the electricity and pow-er in the timer by turning the heated towel rail off for 60 seconds (this will clear the memory). To reset the timer, turn the heated towel rail on again.
Can The Code Range Be Installed On Half Tiled Walls?
Yes! We can supply a half tiled wall leg extensions for half tiled wall setups (These are 12mm longer). These legs are an additional $39. Available in all colours.
Question Not Answered or Want to Make an Enquiry?
